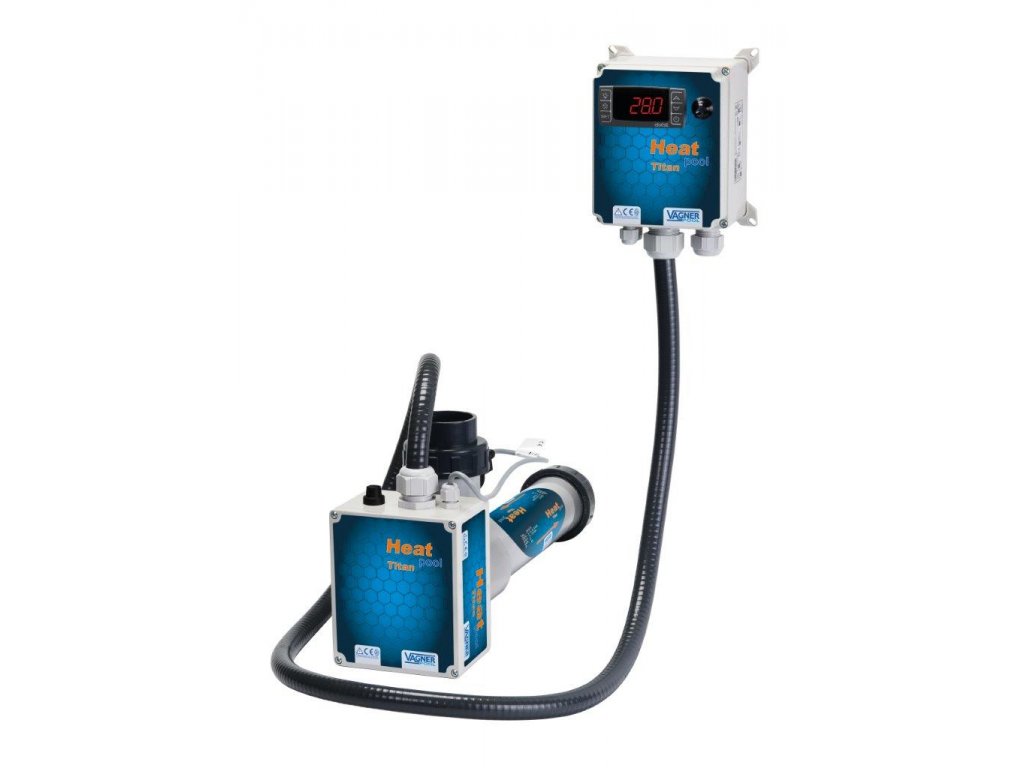

Heating - Heat Pool 6kw, 400V, Titan, El.

Product detailed description

Electric flow heaters are designed to heat water in pools and whirlpools, the activity consists of heating water through the heating body, the heated water temperature is set by a control thermostat. The heater is switched by the contactor, which is controlled by the thermostat, the safety indicator of the flow. For this reason, the so -called large automatic - 24 -hour sewage programmer, current protector (protection against dangerous touch voltage), engine thermal protection, contactor and heating switch are required for heating. The entire heating device is made of titanium stainless steel (for salt water) or plastic. Pool electric flow heaters of the Heat Pool water heaters are specially designed for heating pool water or water in other water circuits with flow. Each heater must be installed behind the current protector in the electrical system. Therefore, we recommend adding the device to the appropriate type of automatic control from VAGNER, which reliably ensures not only the required comfort but also the safety of the operator. & nbsp; The titanium heater Heat Pool with the switching contactor is, similar to the EOVTI type, equipped with el. by flow switch, thermal fuse and electronic thermostat Display thermostat and heating heater contactor are located in a separate control cabinet that is connected to its own heating cables with a length of 1.5 m located in the protective 2 pcs of holder for easy fastening are part of Operating Conditions: Minimum water flow: 4 m 3 /h Operating pressure: 0-3 bar Connection: To the water circuit with a pipe diameter of 50 mm Water quality: chloride content max. 150 mg/l chlorine content max 1 mg/l PH range 7,0--7,8
