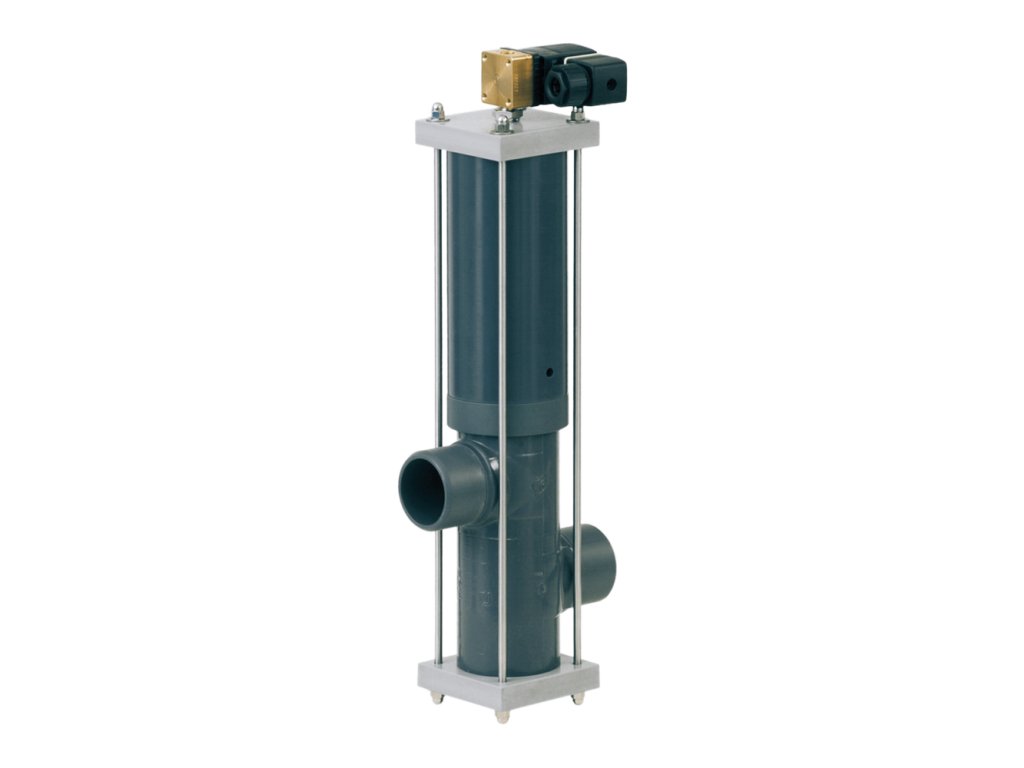

BESGO valve - 3 -way washing valve Ø75mm

Product detailed description

The BESGO valve is a pneumatic valve designed to change the flow in the use of one pump and more attractions or control of overflow flow and bottom (3-way). The big advantage of these valves is the maximum operational safety, the change of position can also take place even when the filter pump is on, but it is always preferable and safer to convert the valve without water flow. In the event of a power supply failure, the valve automatically switches back to the & quot; filtering & quot;, therefore, there is no problem with the eventual stuck in the position and unintentional launch of the water from the pool as in the case of mechanical damage in automatic 6-ways. valves. & nbsp; & nbsp; & nbsp; Schematic performance of 3 -way BESGO valve operation using AS Control Plus - Water is sucked depending on temperature either through bottom suction or overflow groove & nbsp; Scheme for 3-way BESGO valve through bottom suction & nbsp; & nbsp; Scheme for 3-way BESGO valve through an overflow groove & nbsp; & nbsp; & nbsp; & nbsp; Schematic performance of 3 -way BESGO valve - connection of 2 attractions to 1 pump Scheme for & quot; attraction 1 & quot; - Green & nbsp; & nbsp; Scheme for & quot; attraction 2 & quot; - countercurrent & nbsp; & nbsp; & nbsp;
